CIM
Ceramic powder injection molding (CIM) is a combination of ceramic powder and binder through injection molding to get a certain strength and density of parts.
Application
CIM is widely used in the field of structural ceramics. The main products are: Y-TZP grinding ball, dispersing and grinding media, nozzle, ball valve seat, zirconia mold, micro-fan axis, optical fiber pin, fiber sleeve, drawing die and cutting tool, wear- Case and bracelet, bracelet and pendants, ball bearings, golf ball and other light-weight bat as well as other parts at room temperature wear-resistant. Ceramic products is the best choice to improve the texture.
Product Feature
1、High toughness
2、high bending strength
3、good abrasion resistance
4、good heat insulation performance
5、coefficient of thermal expansion is near to steel

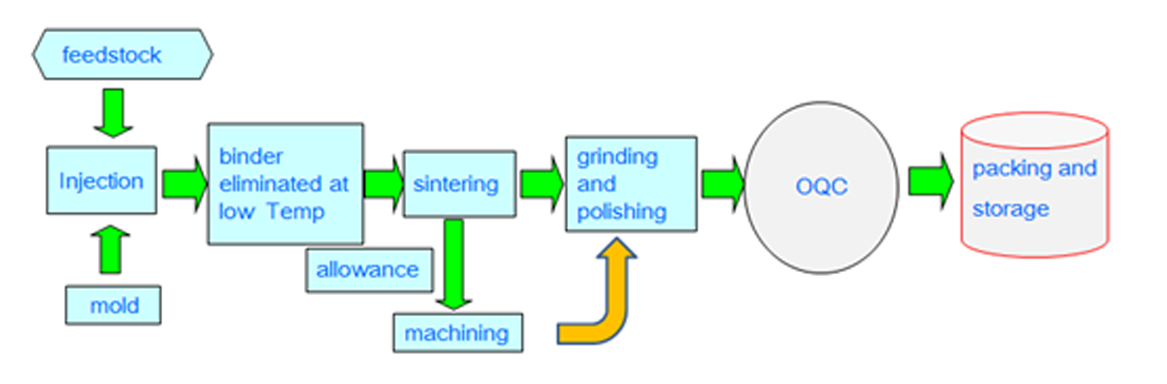

Process
Process Feature
|
Dimension Size |
Dimension tolerance after Sintering |
Dimension tolerance after Post operation |
|
1-4mm |
+/-0.03 |
+/-0.03 |
|
4-10mm |
+/-0.04 |
+/-0.03 |
|
10-20mm |
+/-0.05 |
+/-0.03 |
|
20-30mm |
+/-0.07 |
+/-0.03 |
|
30mm-50mm |
+/-0.08 |
0.05 |
|
50mm以上 |
+/-0.10 |
0.05 |
|
Planeness(mm) |
0.02mm |
0.005mm |
|
Character |
Generally Range |
Special Range |
|
Product Weight |
0.1-100g |
0.05-200g |
|
Wall thickness |
0.5-10mm |
To 0.15mm |
